Modern Industrial Steel Structure Workshop / Structural Steel Contractors
Project introduction:

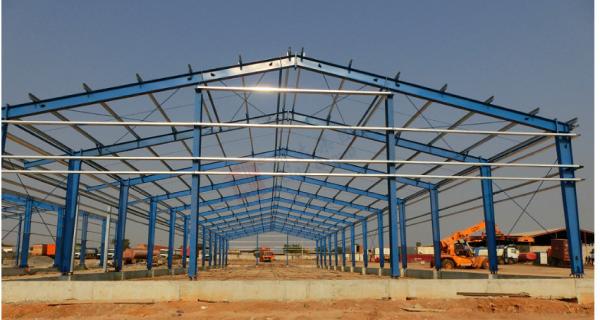

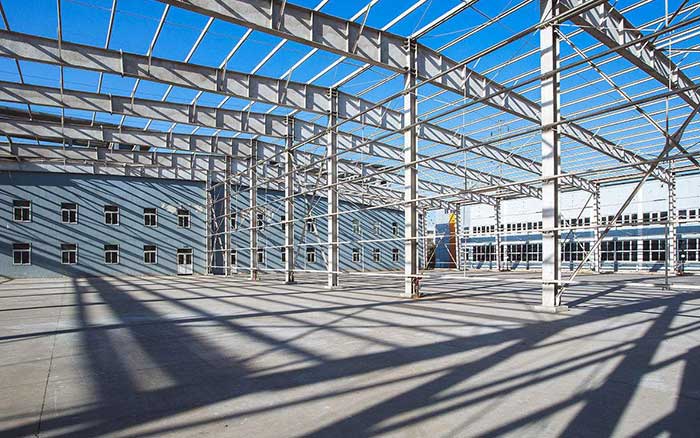

Modern Industrial Steel Structure Workshop / Structural Steel Contractors:
Steel structure has been widely used in many buildings. This is a steel structure workshop. Compared with the traditional concrete building, the available area of the steel structure workshop is larger, more stable and reliable, and at the same time, it has the characteristics of fire and shock.
We can provide personalized customization, according to your requirements to design, at the same time, our product quality is absolutely guaranteed.
The construction materials of steel structure are easy to transport, convenient to assemble, save a lot of time, beautiful appearance, simple, economical, cost-effective.
Specification of steel structure material:
| Steel Frame | H section steel | Q235/Q345 steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding |
| Rust removal | Sand blasting |
| Surface finish | Alkyd paint or galvanized |
| Intensive bolt | M20,Grade 10.9 |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted |
| Column brance | Φ20, Steel Q235, processed and painted |
| Tie rod | Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt | M12 Galvanized bolt |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet |
| Sky light | 6mm thick PVC |
| Accessories | Glass cement, self-tapping screws, etc. |
| Edge cover | 0.4mm steel sheet profile trimming |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet |
| Down pie | Φ110PVC |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate |
| Accessories | Glass cement, self-tapping screws, etc. |
| Edge cover | 0.4mm steel sheet profile trimming |
| Ventilation | Ventilation ball |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
Our steel structure fabrication factory:
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
Our services:
We can design and fabricate customized steel structure components for light and heavy steel structure buildings in protal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket , high rise steel office buiding, factory , plant, exhibition hall, gym, dormitory building, oli&gas, power station, infrastructure buildings, etc.
Packing and transport:
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
